When a vehicle rounds a corner, various forces come into play to keep it on the intended path. One of these critical forces is camber thrust, generated by the tires' interaction with the road surface.
Camber thrust may not be as well-known as other tire characteristics, but it plays a significant role in handling and cornering performance. Understanding how camber thrust works can help drivers make informed decisions about tire selection and vehicle setup.
In this article, we'll dive into the concept of camber thrust, exploring its effects on tire performance and overall vehicle dynamics. By the end, you'll have a clearer picture of how this force influences your driving experience.
Camber thrust is the lateral force generated by a tilted tire as it rolls along the road surface. This force acts in the direction of the tilt, essentially pushing the vehicle in that direction.
The magnitude of camber thrust is approximately linearly proportional to the camber angle for small angles. In other words, the more a tire is tilted, the greater the camber thrust it generates.
When a tire is cambered, the tread deforms as it contacts the road, causing a difference in the rolling radius across the tire's width. This difference creates a lateral force—camber thrust.
As the tire rolls, the tread entering the contact patch is constrained by the road to follow a straight path. However, if the tire were in free space, the tread would follow an elliptical path due to the camber. The road applies forces to the tire to remove this curvature, and the sum of these forces is camber thrust.
It's important to note that camber thrust is just one component of the total lateral force acting on a tire. The other primary component is cornering force, which is generated by the tire's slip angle.
Cornering force is typically the larger contributor to lateral force, especially for car tires. However, camber thrust can still significantly influence handling, particularly on motorcycles where large camber angles are common.
By understanding the role of camber thrust in tire performance, drivers can make more informed choices when it comes to tire selection and vehicle setup. Whether you're looking for maximum cornering grip or balanced all-around performance, considering camber thrust is key to getting the most out of your tires.
The camber angle of a tire plays a crucial role in how a vehicle handles and performs. It directly impacts the contact patch—the area where the tire meets the road—and this, in turn, affects grip, handling, and tire wear. Understanding the implications of different camber angles can help optimize tire performance for various driving conditions.

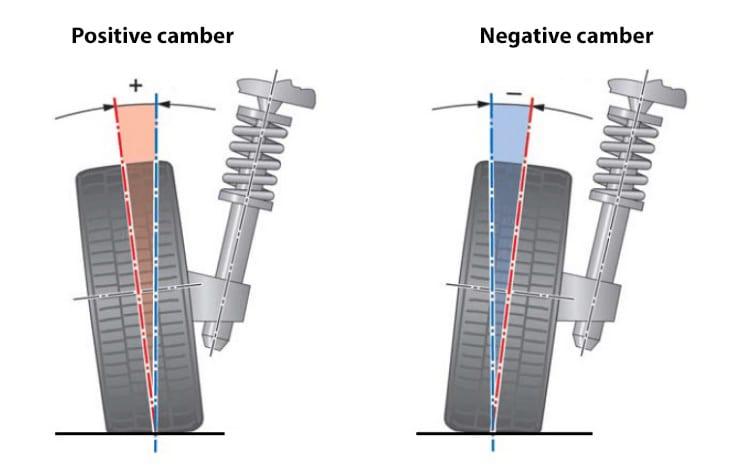

A negative camber angle means the top of the tire tilts inward toward the vehicle. This setup is commonly used to enhance cornering abilities. By maintaining a larger contact patch on the road during turns, negative camber increases lateral grip. This setup allows for more aggressive cornering, making it a popular choice in racing and performance driving.
In contrast, a positive camber angle means the top of the tire tilts outward. This configuration reduces the contact patch during cornering, which can diminish grip and handling. Positive camber is rarely used, except in specific applications like empty trucks, where it helps maintain tire wear balance when the vehicle is loaded.
Zero camber provides the maximum contact patch when the vehicle is traveling in a straight line. This configuration is ideal for straight-line acceleration and braking, as it allows for the most efficient transfer of power to the road. By ensuring even tire wear, zero camber can also contribute to longer tire life.
Camber angles, alongside slip angle adjustments, affect a vehicle's balance during maneuvers. The careful tuning of these angles is essential for optimizing how smoothly a vehicle can change direction and maintain its path. Tailoring camber settings to specific driving environments can markedly enhance tire efficacy, ensuring the best possible performance for various applications.
Understanding the nuances between positive and negative camber is essential for optimizing vehicle handling and tire performance. Each type of camber angle affects how a vehicle interacts with the road, influencing its stability and cornering capabilities.
Negative camber involves the inward tilt of the tire's top edge toward the vehicle, a setup that maximizes the tire's road contact during turns. This alignment effectively distributes the vehicle's weight across the tire, enhancing grip and allowing for more agile cornering. It's a preferred configuration in performance settings where maintaining traction during high-speed maneuvers is key.
Positive camber, by contrast, involves the outward tilt of the tire's top edge. While it reduces the contact area during cornering, leading to decreased lateral grip, it serves a role in specific applications. For instance, vehicles such as trucks might use positive camber when unloaded to ensure that the tires settle into an optimal contact angle once they are carrying weight, thereby balancing wear and maintaining stability.
Camber thrust plays a pivotal role in determining a vehicle's handling characteristics, particularly during cornering. This force acts laterally, generated by the inclined position of the tire, aiding the vehicle in its intended path through curves. By enhancing the overall grip, camber thrust allows for more responsive and controlled navigation of turns.
When a vehicle traverses a road with a sloped surface, the camber thrust effect becomes more noticeable. The road’s tilt can intensify the impact of camber thrust, potentially causing the vehicle to veer towards the decline. To maintain a straight course, drivers need to adjust their steering to counterbalance this pull. Proper alignment and camber settings are crucial in harmonizing the vehicle’s response to such road conditions.
While camber thrust offers benefits in cornering, excessive angles can compromise stability. Over-tilting may lead to erratic handling, where the vehicle exhibits unpredictable behavior during maneuvers. This instability is particularly pronounced at high speeds or during abrupt direction changes. Alongside centrifugal forces, camber thrust necessitates precise suspension adjustments to ensure a steady and reliable driving experience.
Camber angles significantly influence how tires wear over time. Incorrect camber can lead to uneven pressure distribution across the tire's surface. This imbalance results in one side of the tire experiencing more wear than the other, necessitating earlier replacement and impacting driving performance.
When camber settings are excessively positive or negative, the tire's inner or outer edge wears down more quickly. This uneven wear compromises the tire's durability and reliability, increasing the likelihood of unexpected failures. Additionally, it reduces traction, making it harder to maintain stability during acceleration and deceleration.
Regular alignment ensures that the tires make proper contact with the road, distributing the vehicle's load evenly across the tread. This practice not only prolongs the lifespan of the tires but also improves fuel efficiency by minimizing resistance. Scheduled maintenance checks help keep camber angles optimized, resulting in safer and more cost-effective driving experiences.
Optimizing camber involves adjusting angles to meet the unique demands of different driving environments. Whether navigating city streets, racing on a track, or exploring off-road trails, the appropriate camber setup can enhance vehicle dynamics. Each configuration must align with the specific conditions to ensure optimal tire-road interaction.
To maximize efficiency, the camber angle should be tailored to optimize the tire’s contact patch for specific driving conditions. During turns, a slight negative camber increases the contact area, enhancing grip. However, excessive camber can compromise traction during straight-line driving, impacting acceleration and braking. Achieving the right balance is essential for desired handling performance.
Determining optimal camber settings can benefit from professional expertise. Skilled technicians can assess the vehicle’s suspension and driving needs to provide precise adjustments. Their knowledge ensures that camber angles align with performance objectives, enhancing both safety and driving pleasure.
Understanding camber thrust is essential for optimizing your vehicle's handling and tire performance. By tailoring camber angles to your specific driving needs, you can enhance cornering grip, maintain stability, and extend tire life. If you're looking for the right tires to complement your vehicle's setup, shop for tires online with us and let our experts help you find the best deals.
